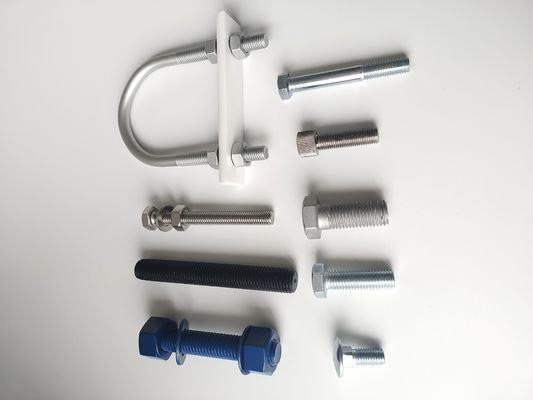

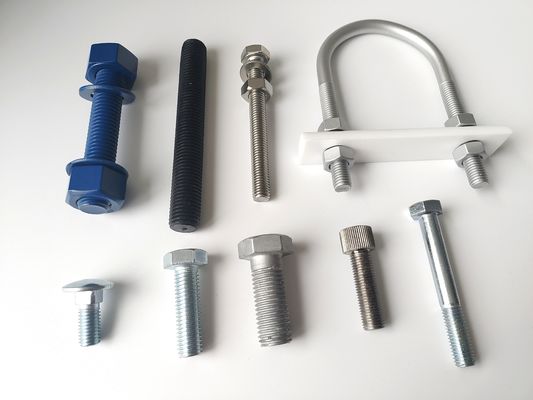

Custom Size Copper Alloy and Titanium Alloy Bolts for Diverse Industrial Applications

Nama merek:	FLRS or OEM
Nomor Model:	FLRS-B000
MOQ:	100Set
harga:	USD0.1-50/PC
Rincian kemasan:	kotak karton / kayu lapis / palet kayu lapis
Ketentuan Pembayaran:	T/T, L/C, Western Union

Informasi Rinci

Deskripsi Produk

Informasi Rinci

Tempat asal:

Sertifikasi:

ISO9001

Nama Produk:

Matrial:

CS, AS, SS, Ti, PVDF

Nilai:

4.8, 6.8, 8.8, 10.9,12.9

Menyelesaikan:

PTFE, Xylan Fluocarbon, HDG, Galvanis, Oksida Hitam, Dacromet

Warna:

Hitam, Putih, Merah, Hijau, Biru, Abu-abu

Standar:

ASME, DIN, ISO

Ukuran:

Sebagai permintaan pembeli

Aplikasi:

Bangunan, Mesin, Mobil, Kapal, Bahan Kimia

Sedang mengemas:

Karton +kasus kayu lapis atau menurut permintaan pelanggan

Majelis:

Tersedia

Tersedia

Menyediakan kemampuan:

10 ton/bulan

Menyoroti:

custom bolts with various materials

non-standard bolts with surface treatments

mechanical fasteners with custom specifications

Deskripsi Produk

Custom Bolt Solutions for Diverse Industrial Applications

We provide comprehensive bolt manufacturing services, offering both standard and custom solutions with various materials, surface treatments, and specifications. Our expertise includes personalized adjustments of bolt type, material, size, thread, surface treatment, and mechanical performance to meet specific application requirements.

Standard Bolt Customization

Compliant with international standards, our standard bolts can be customized in material grade, surface finish, precision level, and packaging:

International Standards: Metric System (ISO 898-1, DIN 933/931, GB/T 5782/5783) for coarse/fine thread bolts (M1-M64)
Imperial System: ASME B18.2.1, ANSI B18.2.1 for UNC/UNF thread bolts (#0-80 to 4"-4)
Common Types: Hexagon head bolts, flange bolts, countersunk head bolts, socket head cap screws, carriage bolts, and eye bolts

Non-Standard Bolt Customization

For specialized requirements beyond standard specifications, we offer complete customization services:

Special Structures: Custom-shaped heads, integrated pins/studs, hollow bolts, stepped bolts, and bolts with custom slots/holes
Non-Standard Threads: Custom pitch, left-hand threads, trapezoidal threads, buttress threads, and multi-start threads
Size Optimization: Ultra-small bolts (M1-M3), large-diameter bolts (M64-M150), and ultra-long bolts (up to 3000mm)

Material Options

Material Category	Typical Grades	Key Properties	Suitable Applications
Carbon Steel	1018, 1045, SAE 10B38	Tensile strength: 400-1000 MPa; good machinability; cost-effective	General industrial machinery, construction, automotive non-critical components
Stainless Steel	304 (1.4301), 316 (1.4401), 316L (1.4404)	Excellent corrosion resistance; temperature range: -200°C to 600°C	Marine equipment, food processing, medical devices, chemical pipelines
Alloy Steel	40Cr, 35CrMo, 42CrMo, SAE 4140	High strength (≥1000 MPa); good fatigue resistance; hardness: HRC 30-45	Automotive engines, wind turbines, heavy-duty machinery, aerospace accessories
Copper Alloy	Brass (H62, H65), Bronze (QSn6.5-0.1)	Good electrical conductivity; corrosion resistance; aesthetic appearance	Electronic equipment, electrical connectors, decorative hardware
Special Materials	Titanium Alloy (Ti-6Al-4V), Inconel 718, Hastelloy C-276	Extreme high-temperature resistance (up to 1200°C); lightweight; superior corrosion resistance	Aerospace, aviation, high-end petrochemical, nuclear industry

Core Specification Ranges

Size Range: Shank diameter M1-M150 (metric), #0-80 to 4" (imperial); length 3mm-3000mm
Thread Precision: Metric: 4g-6g; Imperial: 2A-3A; high-precision options (Class 5g) available
Mechanical Performance: Tensile strength 400-1500 MPa; yield strength 240-1300 MPa

Surface Treatment Options

Zinc plating: Salt spray resistance ≥200h; cost-effective
Dacromet/Geomet: Salt spray resistance ≥1000h; RoHS compliant
Hot-dip galvanizing: For heavy corrosion environments
Electrophoretic/Powder coating: Custom colors and high corrosion resistance

Core Customization Advantages

Full-Demand Coverage: From minor adjustments to complete non-standard designs
Strict Quality Control: Material inspection, dimensional verification, and performance testing
Fast Response Cycle: Standard samples in 3-5 days; non-standard prototypes in 7-15 days
Technical Support: 15+ years of fastener expertise for design optimization

Typical Application Fields

Automotive & Transportation: Engine bolts, chassis flange bolts, exhaust system bolts
Aerospace & Aviation: Titanium alloy bolts, high-temperature Inconel bolts
Industrial Machinery: Wind turbine bolts, textile machinery bolts, hydraulic system bolts
Electronics & Electrical: Circuit board bolts, electrical enclosure bolts
Construction & Infrastructure: Bridge bolts, marine engineering bolts, building steel structure bolts

To provide accurate customization solutions, please provide:
1. Application scenario (e.g., automotive engine, wind turbine)
2. Key requirements (load capacity, corrosion resistance, temperature range)
3. Drawing/sample or standard number
4. Quantity and delivery time
